The CBController was economically designed with the smaller farmer in mind. With the goal of simple automation and monitoring, this controller strives to detect issues before they become real problems. Many older grain systems were installed before automation was popular, making the CBController an excellent addition. Many new systems offer automation but come at a heavy cost. The CBController is capable of many things that newer systems offer at a much more practical price. This controller will serve as your new central hub with easy interactive touchscreen controls. Compatible with most motor devices, so no need to replace existing electrical work.
This all in one control and monitoring system lets you customize it to best fit your setup. Create custom zones for grouping motors that share a general purpose. Such as filling a dryer, emptying a dryer, unload pits or even filling overhead bins. Feel confident that if an issue is detected, that zone will safely and automatically shutdown according to what the problem is.
The CBController uses multiple monitoring techniques like identifying tripped motor overloads, measuring shaft RPMs, and sensing how many amps motors are pulling. Using all of this data you can now set over-amp alarms, enable auto stops to prevent damage to equipment, automatically shut down zones when no load is detected, stop transferring material when bins become full, place manual switches about to control zones and allow dryers to control zones for filling and discharge. The options are vast for tailoring the CBController to your grain site.
Add the Remote Monitoring Module and enjoy the peace of mind of checking in on your system whenever you want. Receive notifications of issues immediately with the app wherever you are.
Check out the videos below to see how quick and easy it is to customize your system!

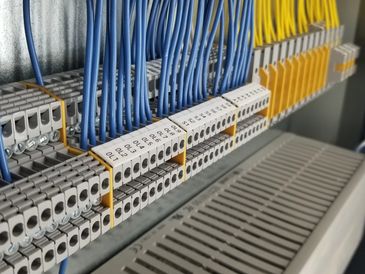

Use your local and trusted electrician for the complete install. All labeled terminal blocks for simple connections.

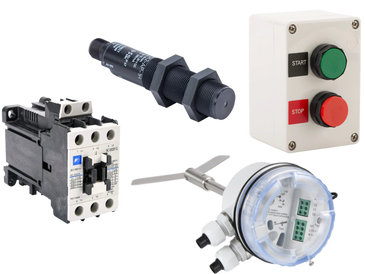

Choose from an endless array of switches and devices to assist in the control and monitoring of your system.

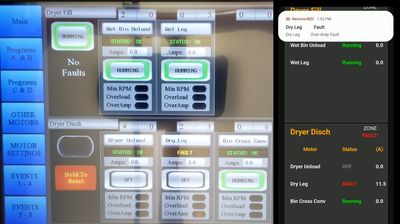

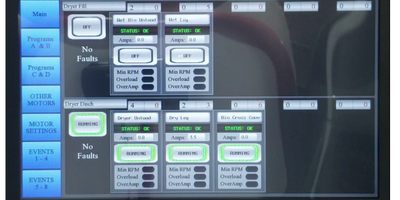

View real-time status of the system on your phone and receive alerts when a fault occurs.

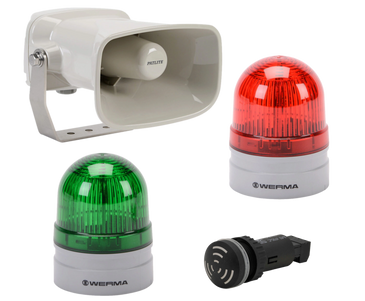

Utilize built in alarm relay to activate external buzzers or lights

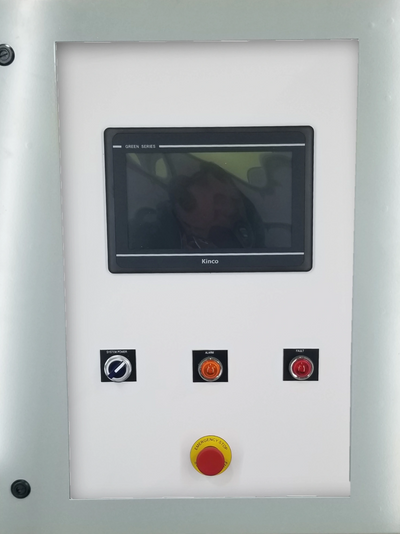

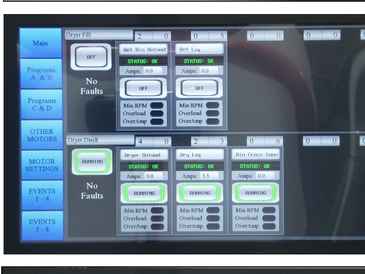

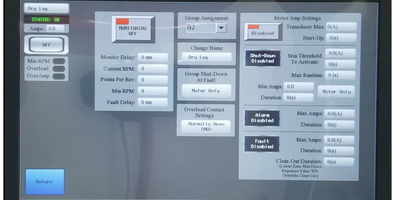

Simple touchscreen layouts allow users to easily adjust settings with confidence

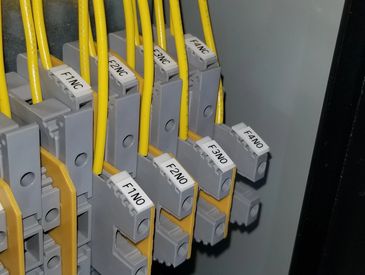

Fault relays for each of the 4 zones can alert other equipment that the controller has detected issues
- Connects to new or old motor contacts
- Compatible with VFD digital inputs
- Each motor is assignable to multiple zones
- Set up to 4 zones for group tasks such as filling a dryer
- Single button start/stop for each zone
- Set start-up delays to ease stress on electrical system
- Set shut-down delays to allow for equipment cleanout for easier start-up
- Independently monitor shaft RPM to detect equipment failure or belt slippage
- Verify each motor overload has not been tripped
- Connect amp transducer (sold separately) or VFD analog output to analyze amp draw
- Monitor low amp draw for automatic shut-down for unload pits
- Use triggers to fill/unload dryers, run unload pits, fill overhead bins and more
- Any closed contacts device can trigger an event (Switch, relay, rotary sensor, etc.)
- Connect event triggers to start and stop motors or zones
- Assign delays to allow for equipment cleanouts
- Send alert notifications when event occurs
- Download the app and scan the QR code to gain immediate access to your system
- No VPN login or router configuration required
- In app notifications for immediate fault warnings
- View status of each zone and motor live from anywhere in the world
- Cabinet with controller and touchscreen
- Cabinet mounting feet
- User manual
- Installation manual
- 3-year parts warranty
- Size: 30H x 24W x 8D (inches)
- Weight: 100lbs (US) - Mounting feet included
- Rating (Indoor): NEMA 3R
- Rating (Outdoor): NEMA 3R/4/12
- Material: Powder Coated Carbon Steel
- Designed to be installed by your local electrician
- Power Requirements: 120/240V AC Supply
- Power Usage: 100W (All components utilize safe Class 2 power supply)
- All external connections are made to labeled terminal blocks (see installation manual)
- Analog Inputs: 0-10V DC (Current Transducers) [Qty. 8 - excludes motor 9]
- RPM Sensor Inputs: 24V DC [ Qty. 9]
- Overload Inputs: 24V DC [Qty. 9]
- Event Trigger Inputs: 24V DC [Qty. 8]
- Motor Outputs: NO relay (Max: 240V AC / 5 Amp) [Qty. 9]
- Alarm Output: NO relay (Max: 240V AC / 5 Amp) [Qty. 1]
- Fault Outputs: NO/NC relay (Max: 240V AC / 5 Amp) [Qty. 4]

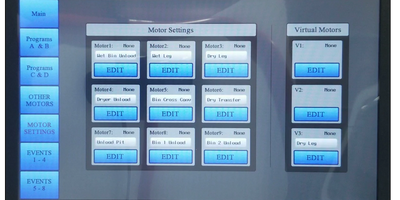

Motor Setups and Zone Customization

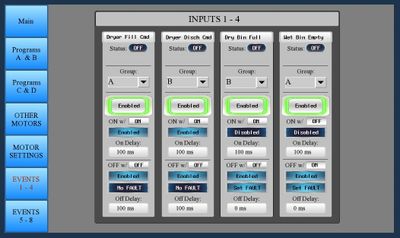

External Event Triggers
Setting Up Monitoring For Equipment
Program Automatic Unload Pit and Overhead Bin

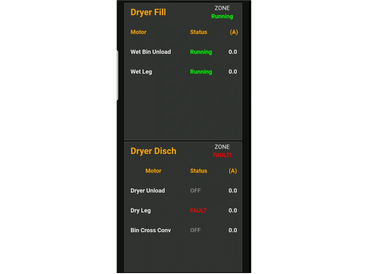

Remote Monitoring App
- Fully featured cabinet designed for indoor locations.
- Outdoor cabinet includes additional clear swinging door to gain access to the controller. ( NEMA 3R/4/12 )
*Requires internet connection at main panel
- <$20 yearly app fee may apply through app store (Not our app)
- Pre-installed if ordered with controller
0-10V Output, 0-50 Amp
w/ 2 meter Quick Connect Cable
w/ 10 meter Quick Connect Cable
Lower 48 States
Pricing determined when we receive shipping address
Please provide which unit with accessories and quantities in the contact form for an official quote.
